Endless Web Slings
Endless Web Slings

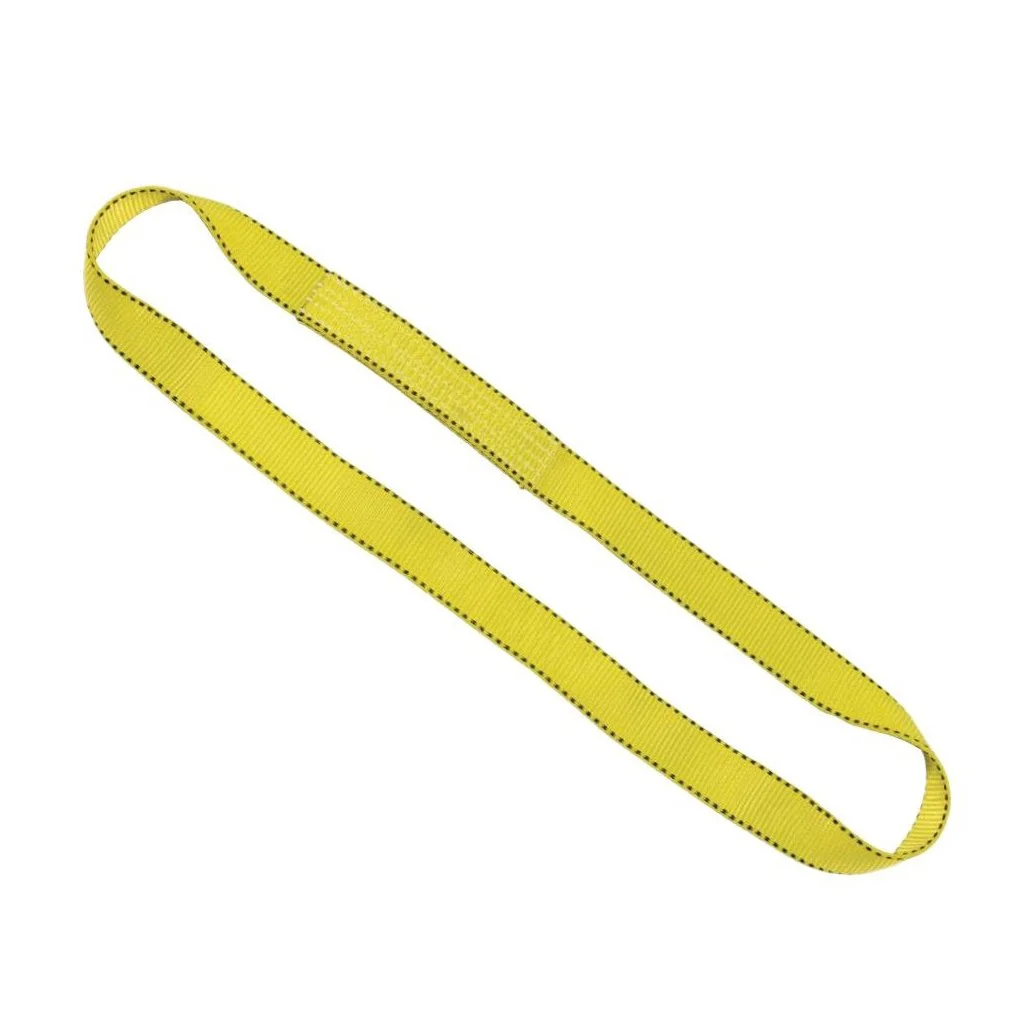

“EN” Web slings are a continuous loop formed by joining ends of the webbing together with a load-bearing splice. They are extremely versatile as the design allows for rotation of bearing points, avoiding one constant bearing point and thereby increasing useful life. They are suitable for use with all three hitches: vertical, basket and choker.
Made in the USA
|
specifications |
||||||||
|
# of Plys |
Part No. |
Web Width (Inches) |
Rated Capacity (lbs.) |
Min. Standard Length (ft) |
Approximate Sling Weight (lbs.) |
|||
|
Vertical |
Choke |
Basket |
Base |
Adder/ft. |
||||
|
One Ply |
EN191 |
1 |
3,200 |
2,500 |
6,400 |
3 |
.40 |
.12 |
|
EN192 |
2 |
6,400 |
5,000 |
12,800 |
3 |
.80 |
.25 |
|
|
EN193 |
3 |
8,600 |
6,900 |
17,200 |
3 |
1.30 |
.35 |
|
|
EN194 |
4 |
11,500 |
9,200 |
23,000 |
3 |
1.70 |
.48 |
|
|
EN196 |
6 |
16,300 |
13,000 |
32,600 |
3 |
2.50 |
.70 |
|
|
Two Ply |
EN291 |
1 |
6,200 |
4,900 |
12,400 |
3 |
.80 |
.25 |
|
EN292 |
2 |
12,200 |
9,800 |
24,400 |
3 |
1.60 |
.50 |
|
|
EN293 |
3 |
16,300 |
13,000 |
32,600 |
3 |
2.50 |
.75 |
|
|
EN294 |
4 |
20,700 |
16,500 |
41,400 |
3 |
3.30 |
1.10 |
|
|
EN296 |
6 |
28,600 |
23,000 |
57,200 |
3 |
4.90 |
1.50 |
|
|
Three Ply |
EN391 |
1 |
8,000 |
6,400 |
16,000 |
3 |
1.20 |
.38 |
|
EN392 |
2 |
16,000 |
12,800 |
32,000 |
3 |
2.40 |
.75 |
|
|
EN393 |
3 |
21,500 |
17,200 |
43,000 |
3 |
3.60 |
1.10 |
|
|
EN394 |
4 |
28,700 |
23,000 |
57,400 |
3 |
4.80 |
1.50 |
|
|
EN396 |
6 |
40,700 |
32,500 |
81,400 |
3 |
7.20 |
2.30 |
|
|
Four Ply |
EN491 |
1 |
10,000 |
8,000 |
20,000 |
3 |
1.60 |
.52 |
|
EN492 |
2 |
19,800 |
15,800 |
39,600 |
3 |
3.20 |
1.00 |
|
|
EN493 |
3 |
26,700 |
21,300 |
53,400 |
3 |
4.90 |
1.60 |
|
|
EN494 |
4 |
35,600 |
28,400 |
71,200 |
3 |
6.50 |
2.10 |
|
|
EN496 |
6 |
50,500 |
40,400 |
101,000 |
3 |
9.70 |
3.10 |
|
