Armor Super Slingers
Armor Super Slingers
Super Slinger can be 15 times lighter than steel. Using Super Slingers can reduce the amount of manpower needed for the job, as well as the hours it takes to do the lift. A SS-3000 sling has a Vertical capacity of 300,000 lbs, and at a 60 foot length the sling would weigh 320 lbs. To reach the same capacity in wire rope the slings would have to be 4-1/8" diameter would weigh 2000 lbs. That means the Super Slingers weigh only 16% of what the wire rope sling would weigh!

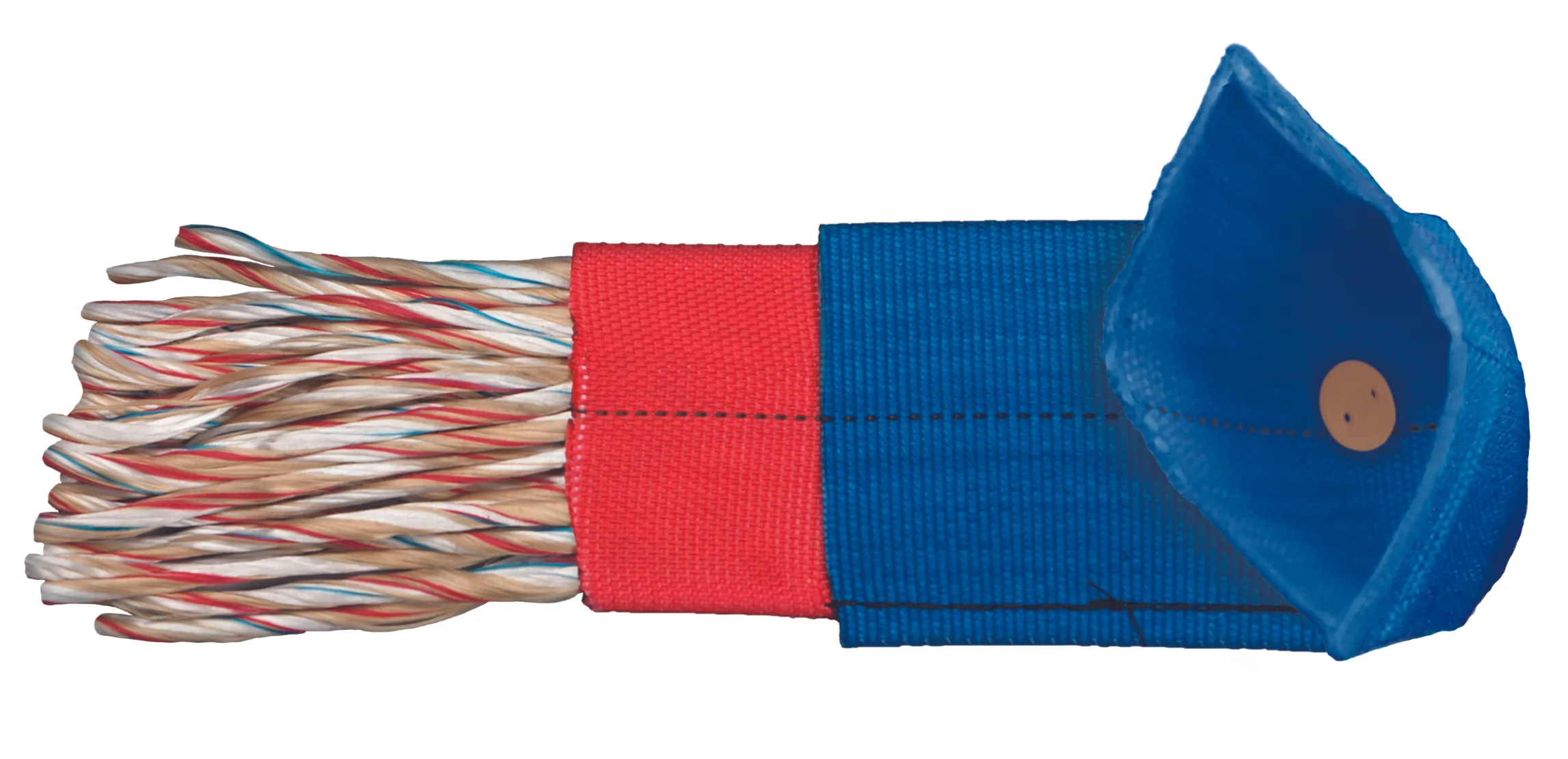

Armour Super Slinger are made with a heavy duty nylon cordura cover for maximum protection, and a red internal jacket for easy inspection. Armour Super Slingers are RFID enabled to allow for fast and accurate sling identification.
SPECIFICATIONS |
||||||||
Part Number |
Sling Color |
Vertical Capacity |
Choker Capacity |
Basket 90˚ |
Basket 60˚ |
Basket 45˚ |
Approximate Diameter (in.) |
Approximate Weight per foot (lbs.) |
SSA200 |
Blue |
20,000 |
16,000 |
40,000 |
34,600 |
28,000 |
1 1/4 |
0.55 |
SSA250 |
Blue |
25,000 |
20,000 |
50,000 |
43,2000 |
35,000 |
1 1/4 |
0.65 |
SSA300 |
Blue |
30,000 |
24,000 |
60,000 |
51,900 |
42,000 |
1 3/8 |
0.80 |
SSA400 |
Blue |
40,000 |
32,000 |
80,000 |
69,200 |
56,000 |
1 3/4 |
1.10 |
SSA500 |
Blue |
50,000 |
40,000 |
100,000 |
86,500 |
70,000 |
1 7/8 |
1.50 |
SSA600 |
Blue |
60,000 |
48,000 |
120,000 |
103,800 |
84,000 |
2 |
1.60 |
SSA700 |
Blue |
70,000 |
56,000 |
140,000 |
121,100 |
98,000 |
2 1/8 |
1.65 |
SSA850 |
Blue |
85,000 |
58,000 |
170,000 |
147,000 |
119,000 |
2 1/2 |
1.85 |
SSA1000 |
Blue |
100,000 |
80,000 |
200,000 |
173,000 |
140,000 |
2 3/4 |
2.20 |
SSA1250 |
Blue |
125,000 |
100,000 |
250,000 |
216,200 |
175,000 |
3 |
3.00 |
SSA1500 |
Blue |
150,000 |
120,000 |
300,000 |
259,500 |
210,000 |
3 1/4 |
3.35 |
SSA1750 |
Blue |
175,000 |
140,000 |
350,000 |
302,700 |
245,000 |
3 1/2 |
4.00 |
SSA2000 |
Blue |
200,000 |
160,000 |
400,000 |
346,000 |
280,000 |
3 3/4 |
4.35 |
SSA2250 |
Blue |
225,000 |
180,000 |
450,000 |
389,700 |
318,000 |
5 |
5.00 |
SSA2500 |
Blue |
250,000 |
200,000 |
500,000 |
433,000 |
353,000 |
5 1/2 |
5.85 |
SSA2750 |
Blue |
275,000 |
220,000 |
550,000 |
476,300 |
388,000 |
6 |
6.50 |
SSA3000 |
Blue |
300,000 |
240,000 |
600,000 |
519,600 |
424,000 |
6 1/2 |
7.15 |
SSA4000 |
Blue |
400,000 |
320,000 |
800,000 |
692,800 |
565,600 |
7 |
7.00 |
SSA5000 |
Blue |
500,000 |
400,000 |
1,000,000 |
866,000 |
707,000 |
8 |
8.50 |
SSA6000 |
Blue |
600,000 |
480,000 |
1,200,000 |
1,039,200 |
848,400 |
9 |
10.00 |
