GrabIQ Chain Slings
Features
- Heavy duty stainless steel identification tag
- Sizes available from 5/16” to 5/8”
- Every chain sling is proof tested to 2× its working load limit
- Latches included with all sling hooks
- 4 to 1 safety factor
- Made in Hatfield, PA.
- Specify chain size
- Specify leg length (bearing point to bearing point)
- Specify end fittings

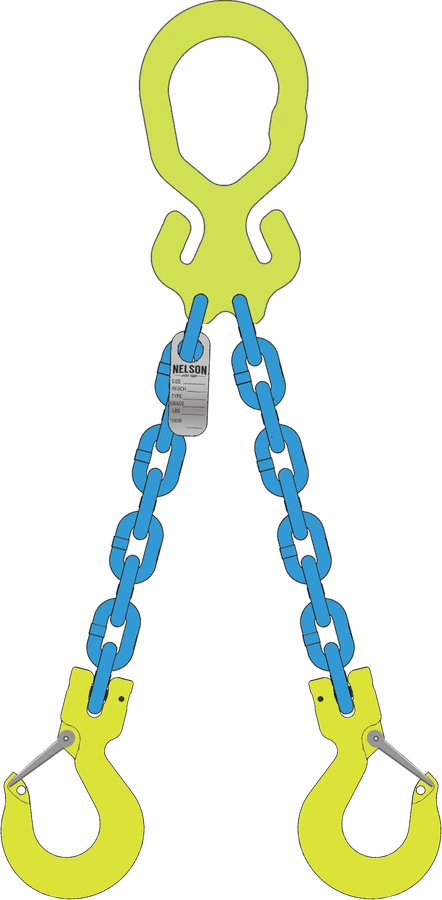

- MGD-EGKN - Double leg chain sling with a master grab link at the top, clevis sling hooks at the bottom
Configurations
The code names the assembly from the top down: the master link or top fitting first, then the hook on the end of each leg. Every one is made to order in any leg length. The fittings themselves are sold separately, so a sling can be rebuilt rather than replaced.
MGD-EGKNEGKN sling hook

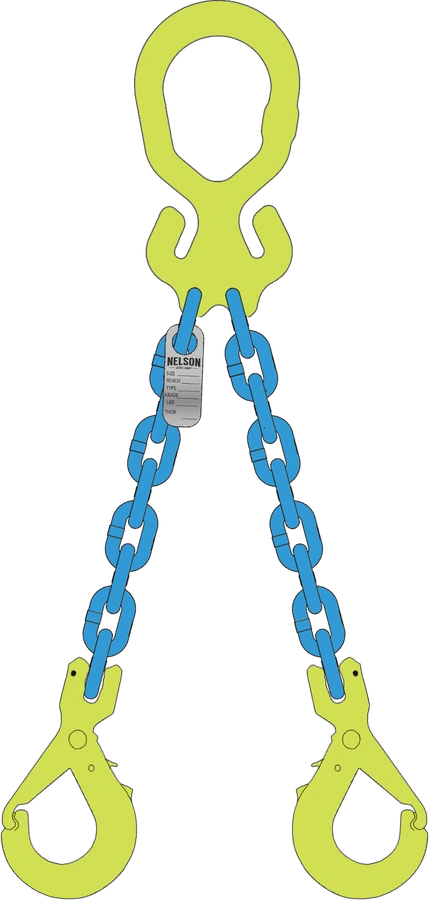

MGD-GBKGBK self-locking hook

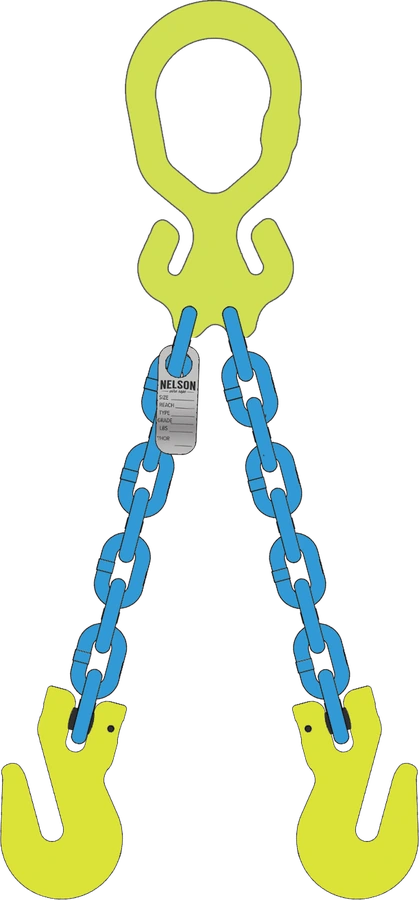

MGD-GC

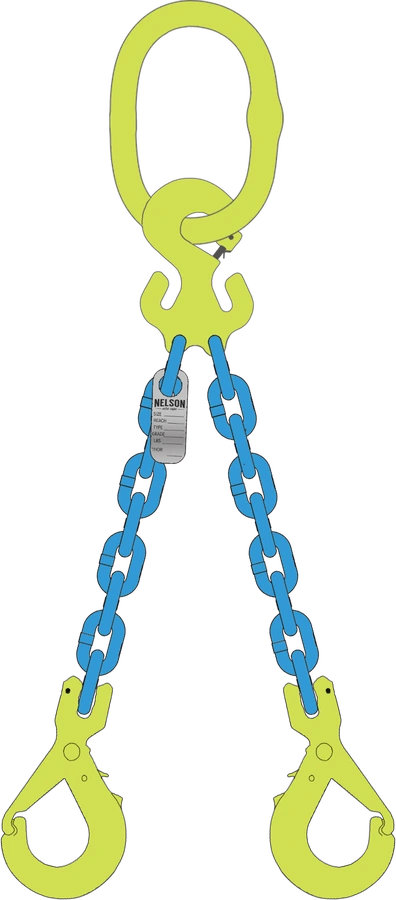

TG2-GBKGBK self-locking hook

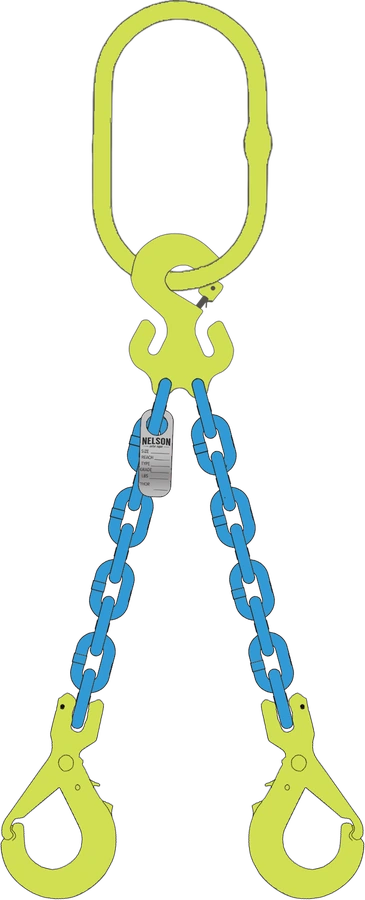

TG2X-GBKGBK self-locking hookSpecifications
| Chain Size | Grade | Rated Capacity (lbs.) | Master Grab Dual (MGD), in. | Oblong Master Link (MF), in. | Oversized Master Link (MFX), in. | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| in. | mm | 60° | 45° | 30° | Diameter | Inside Width | Inside Length | Diameter | Inside Width | Inside Length | Diameter | Inside Width | Inside Length | |
| 5/16” | 8.00 | 100 | 9,900 | 8,100 | 5,700 | 0.83 | 3.0 | 3.9 | 0.67 | 3.1 | 5.5 | 1.0 | 7.1 | 13.4 |
| 3/8 | 10.0 | 100 | 15,200 | 12,400 | 8,800 | 0.94 | 3.5 | 4.9 | 0.87 | 3.7 | 6.3 | 1.1 | 7.1 | 13.4 |
| 1/2 | 13.0 | 100 | 26,000 | 21,200 | 15,000 | 1.2 | 4.1 | 5.9 | 1.1 | 4.3 | 7.5 | 1.3 | 7.1 | 13.4 |
| 5/8 | 16.0 | 100 | 39,000 | 32,000 | 22,600 | 1.4 | 4.7 | 6.9 | 1.3 | 5.5 | 9.4 | 1.5 | 7.1 | 13.4 |
Need a price or a lead time?
Most stocked items ship the same day from Hatfield. Call and we’ll confirm what’s on the shelf.
